-Interface: 5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE), AUTO Negotiation ,AUTO MDI/MDIX

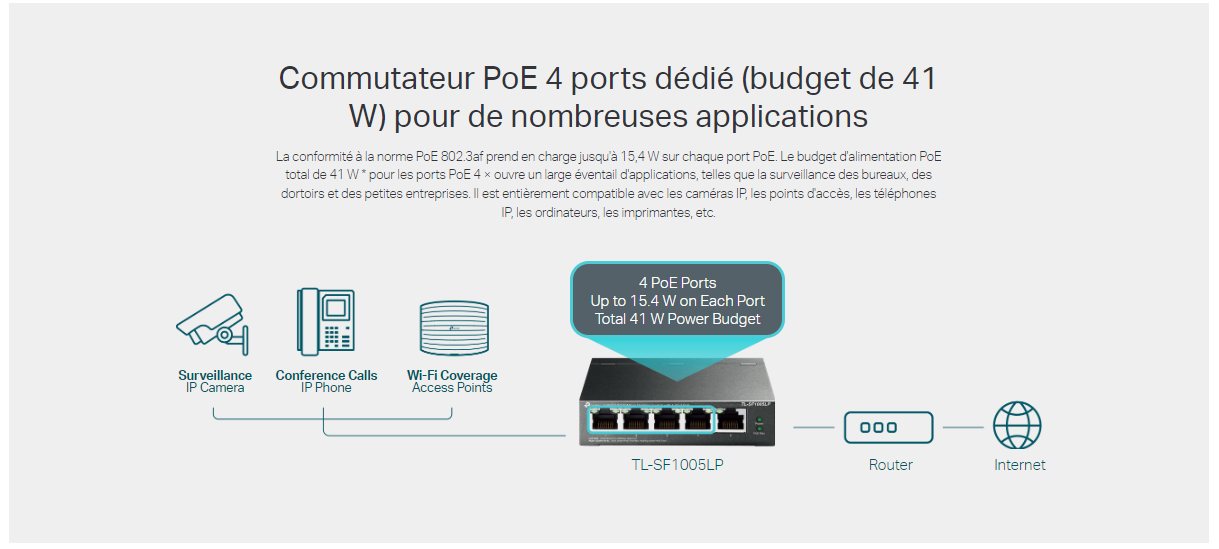

-Ports PoE (RJ45): Standard: 802.3 af compliant ,PoE Ports: Ports 1–4 ,Power Supply: 41 W
-Certification: FCC, CE, RoHS
| CARACTERISTIQUES MATERIELLES | |
| Interface |
5× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE) AUTO Negotiation AUTO MDI/MDIX |
| Interface réseau |
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m)) |
| Nombre de ventilateurs | Fanless |
| Système de verrou physique | Yes |
| Alimentation externe | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| Consommation | Maximum: 2.23W (220V/50Hz) |
| Dimensions (LxPxH) | 100×98×25 mm |
| Montage | Rack Mountable |
| Consommation thermique |
6.48 BTU/h(no PD connected) 160.27 BTU/h(with 41 W PD connected) |
| Max dissipation maximale |
1.9 W (220 V / 50 Hz, no PD connected) 47 W (220 V / 50 Hz, with 41 W PD connected) |
| CARACTERISTIQUES LOGICIELLES | |
| Capacité de commutation | 1Gbps |
| Taux de transfert de paquets | 0.744 Mpps |
| Tableau d'adresses MAC | 2K |
| Trame de Géante | 2KB |
| Fonctions avancées |

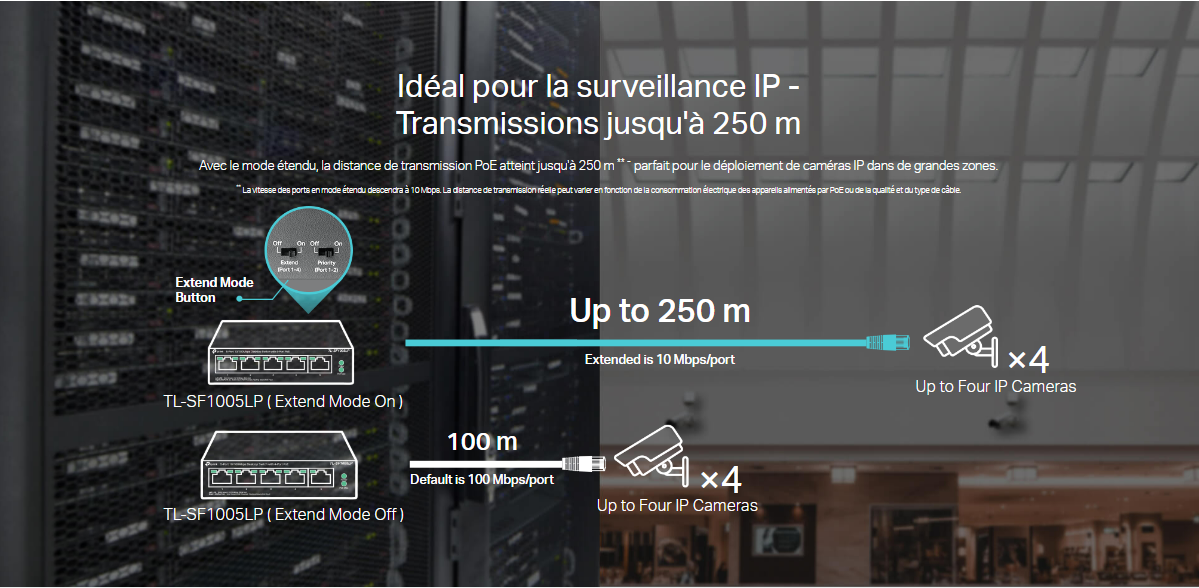

Compatible With IEEE 802.3af/at Compliant PDs Extend Mode Button (Ports 1–4) Priority Mode Button (Ports 1–2) Mac Address Auto-Learning And Auto-Aging IEEE802.3x Flow Control For Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| Ports PoE (RJ45) |
Standard: 802.3 af compliant PoE Ports: Ports 1–4 Power Supply: 41 W |
| Méthode de transfert | Store-and-Forward |
| AUTRES | |
| Certification | FCC, CE, RoHS |
| Contenu de l'emballage |
5-Port 10/100Mbps Desktop/Rackmount Switch Power Adapter |
| Installation | Guide |
| Rackmount | Kit |
| Rubber | Feet |
| Environnement |
Operating Temperature: 0–40 ℃ Storage Temperature: -40℃~70℃ Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
