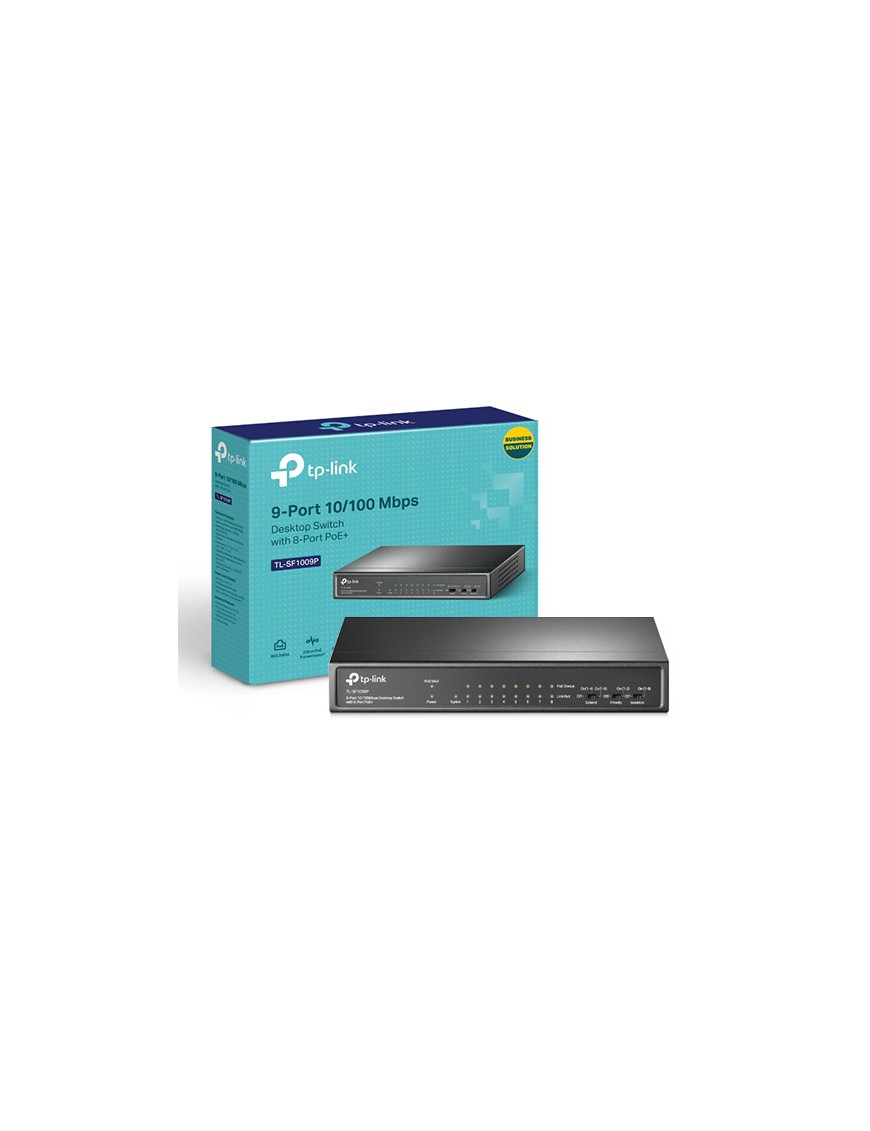

Interface: 9× ports RJ45 10/100 Mbps (8 ports PoE + transfèrent les données et alimentent des câbles individuels); Transmission de données: Jusqu'à 250 m; Taux de transfert de paquets: 1.3392 Mpps; Budget PoE: 65W; Boitier: Métal Résistant; Certification: FCC, CE, RoHS
CARACTERISTIQUES MATERIELLES | |
Interface | • 9× 10/100 Mbps RJ45 Ports (8× 10/100 Mbps 802.3af/at PoE+ ports) • AUTO Negotiation • AUTO MDI/MDIX |
Interface réseau | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
Nombre de ventilateurs | Fanless |
Système de verrou physique | Yes |
Alimentation externe | External Power Adapter (Output: 53.5VDC / 1.31A) |
Taux de transfert de paquets | 1.3392 Mpps |
Ports PoE (RJ45) | • Standard: 802.3 af/at compliant • PoE Ports: Ports 1–8 • Power Supply: 65 W |
Tableau d'adresses MAC | 2K |
Trame Géante | 2 KB |
Capacité de switch | 1.8 Gbps |
CARACTERISTIQUES LOGICIELLES | |
Méthode de transmission | Store-And-Forward |
Fonctions avancées | • Compatible With IEEE 802.3af/at Compliant PDs • Extend Mode Button (Ports 1–4 and Ports 1–8, Up to 250 m PoE power supply and data transmission) • Priority Mode Button (Ports 1–2) • Isolation Mode Button (Ports 1–8) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control For Full-Duplex Mode And Backpressure for Half-Duplex Mode |
AUTRES | |
Certification | FCC, CE, RoHS |
